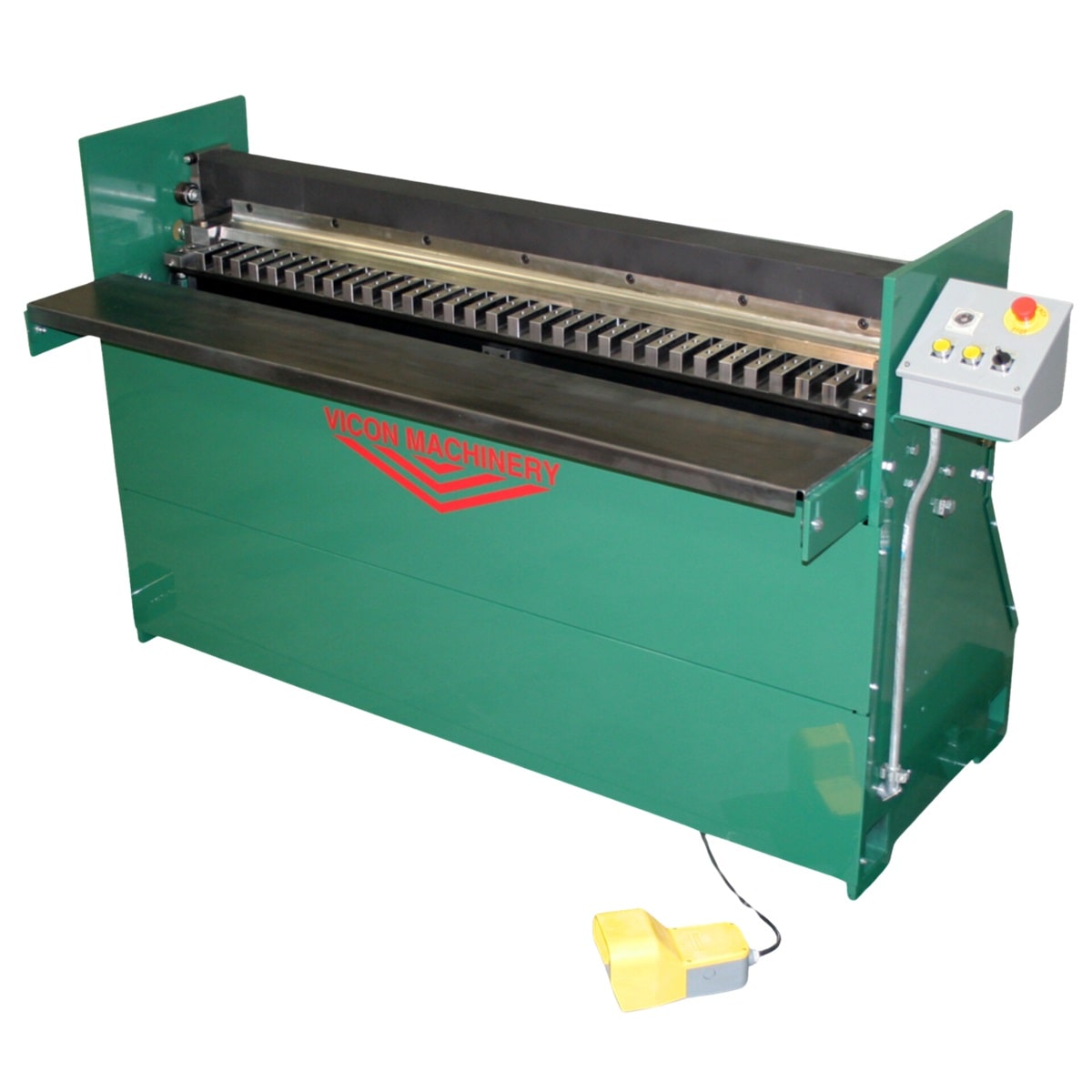

Vicon TDX Duct Brake

The Vicon TDX Duct Brake is a game-changing tool for HVAC sheet metal fabrication.

It offers the following benefits:

  • Efficient 90° Bend for Flanged Duct
    Designed specifically for TDX flanged duct, this brake easily forms the end flange, L‑sections, full‑wrap duct, and fittings — tasks that standard brakes can’t handle

  • Segmented Die Inserts
    Specially spaced bars match flange height to clear the collar during bending — enabling clean edge-to-edge bends without deforming the flange

  • Retractable Notch Locator
    A self-aligning notch guide lifts to seat the flange notch, ensuring precision on each bend. It then retracts to let the sheet slide forward for seamless wrap bending

How can this TDX Duct Brake help your business?

Contact us to discuss your business’s needs and to learn how the Vicon Duct Brake can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Technical Information

Unique Features

• 16-gauge x 5′ bending capacity

• Maximum 2″ liner capacity when forming lined duct

• 6″ x 6″ minimum full wrapped, unlined duct size

• Pneumatic forming cycle, single foot switch operation for TDX or S&D

• Manual or push button controls

• Timer to control bend sequences

• Precision heavy duty construction

• Adjustable height table for TDX, S&D and Raw

• Slip and drive capability

• Front support apron

• Retractable notch positioning guide for self-aligning bend location and easier part removal

• 80 PSI/5CFM

• 115 Volt/Single Phase

Optional

• 36″ manual backgauge
