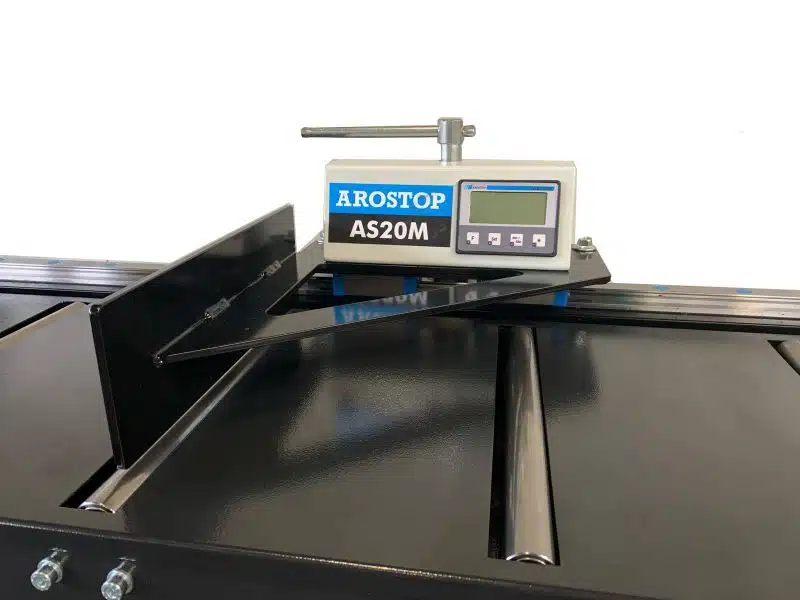

AROSTOP digital length measuring system model AS 20M, is a manually movable length measuring system with a simple and easy-to-read digital display in the stop carriage, mounted on a 30 mm linear guide mounted on a steel angle bracket. The system can be used on both the left and right sides of the machine, and the counter direction can be adjusted to the user’s desired direction.

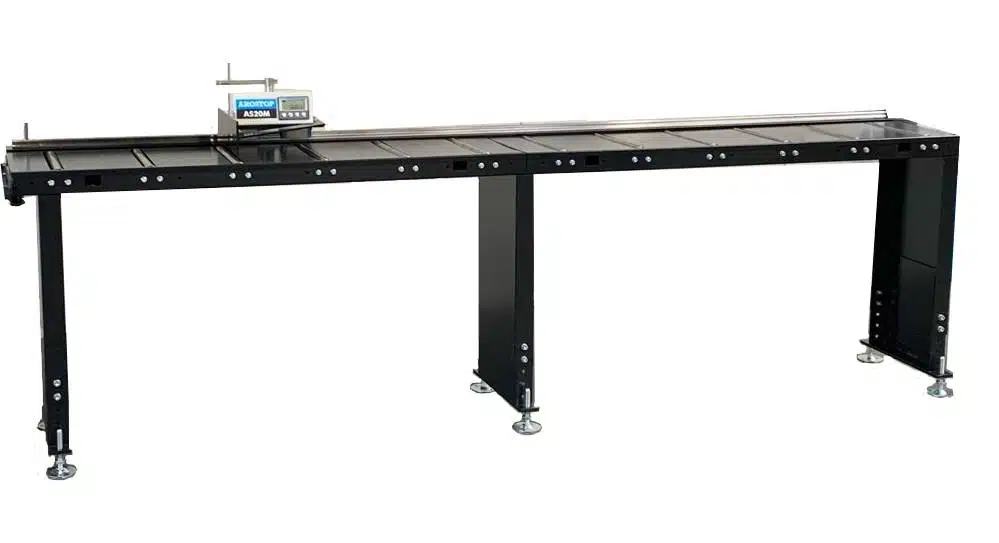

The AROSTOP AS20M consists of a base component measuring 3000 or 4500 mm. If the system is equipped with a measuring tongue, it is possible to measure along the entire length of the system. Without a measuring tongue, the measurement length is approximately 400 mm.

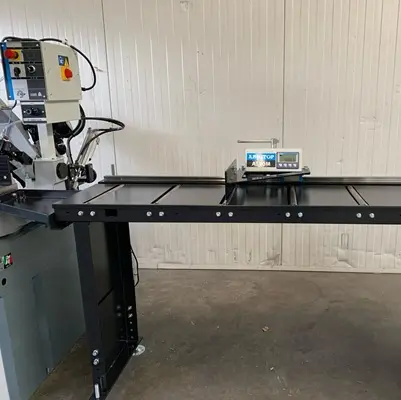

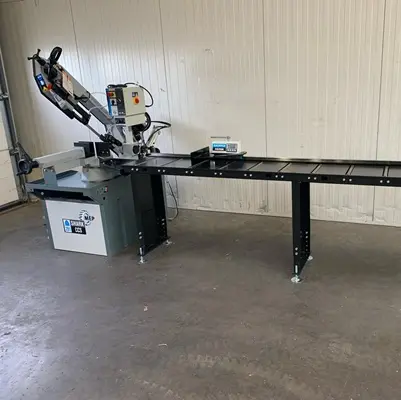

The Arostop AS 20M is suitable for various roller conveyors. We recommend using it with MEP KK330 roller conveyors.
Contact us to discuss your business’s needs and to learn how this product can assit your business. Call us on (02) 8445 8555 or email info@powermachinery.com.au.
• Manual displacement of the stop carriage on linear guide
• 2 backlash-free linear carriages with brake system
• Clamping device for securing the stop carriage
• Positioning accuracy ± 0.1 mm
• Counter direction reversible (left – right)
