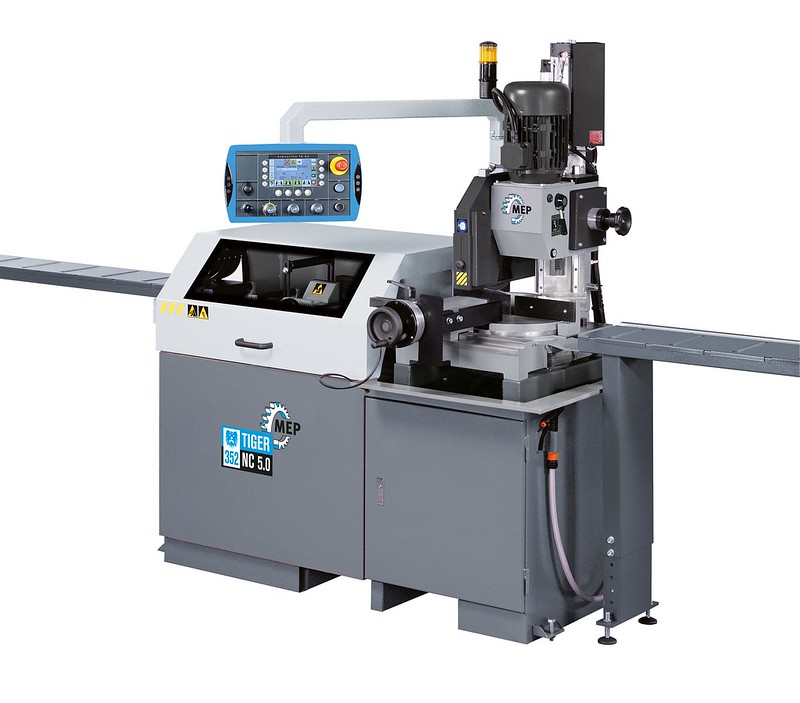

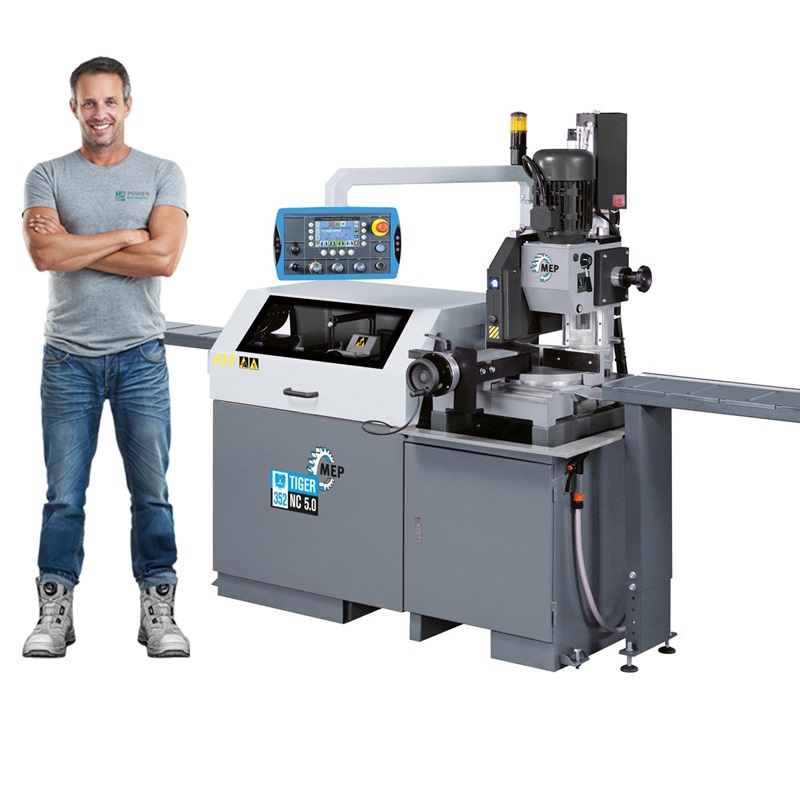

MEP Tiger 352NC Metal Cold Saw

Capacity – 180 x 95mm



Italian made, the MEP Tiger 352NC Automatci vertical metal coldsaw mitres metal from -45° to +60°. A super compact metal cold saw that is well known for its heavy duty nature and fantastic accuracy.

In addition to operating in automatic mode, you can also choose to operate the metal cold saw in semi-automatic mode aswell.

The bar feeder powered by a stepper motor is a guarantee of superior precision, and the adjustable anti-burr device grants the operator burr-free cuts every time.

The controls allow you to store up to 100 cutting programs, each one with different quantities and lengths, ensuring less operator time programming jobs.

How can this MEP METAL Coldsaw help your business?

Contact us to discuss your business’s needs and to learn how the MEP Tiger 352NC can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Unique Features

• The controller is a 7” Touch Screen with intuitive, easy-to-use programming.

• Automatic operation with programmable length, including different pieces and batch numbers on the same bar.  Pressing the start button activates the clamp, cut, return to the programmed position, unclamp and then feed the new part to the programmed length, then repeat.

• The gearbox has a double set of gears, providing four cutting speeds. 15/30/45/90 RPM

• The head swivels on a turntable mounted on roller bearings, so work is always perfectly positioned on a flatbed, and the slot for the blade is always perfectly aligned.

• Mitre cutting from 45 degrees left to 60 degrees right.

• The vice automatically clamps when the head is pulled down, or you can still clamp manually.

• The vice jaws can be adjusted left to right so you can make sure they are as close as possible to the blade when cutting.

• Low voltage submersible pump to make sure coolant is ready when you are.

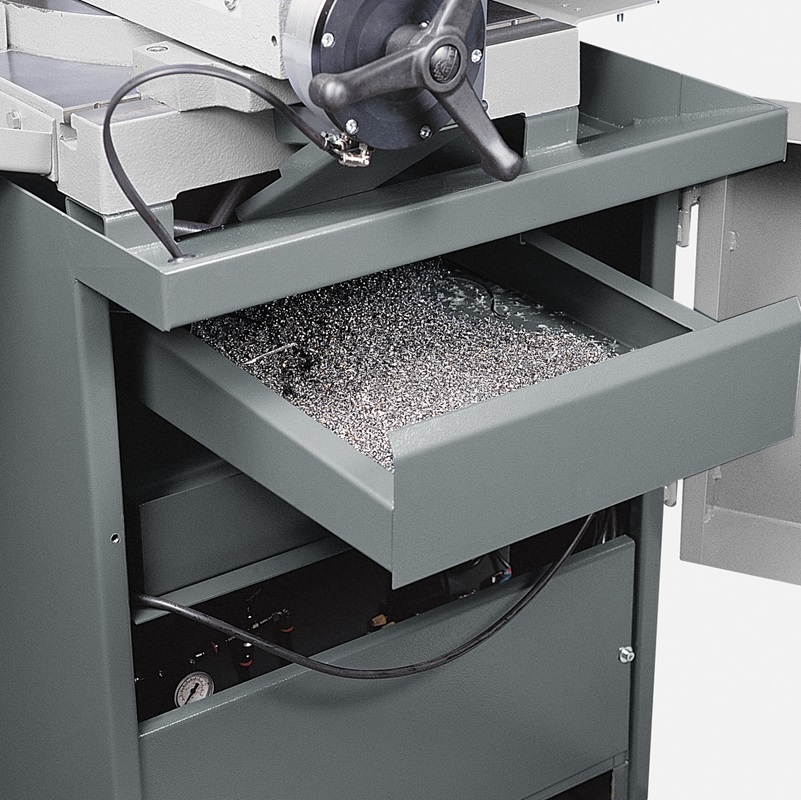

• Comes with a pedestal base with the front door. Perfect for storing blades and tools.

• 2.5kW Motor provides plenty of power for cutting.

• Includes adjustable steel anti-burr device for the offside.

• Fully complies with Australian safety standards 4024.1
