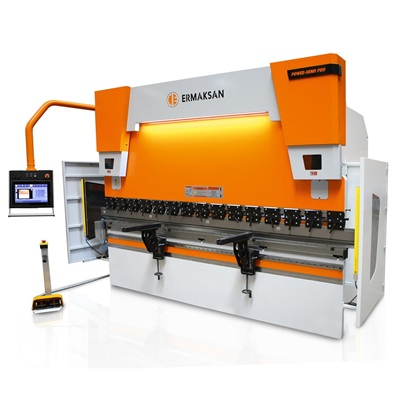

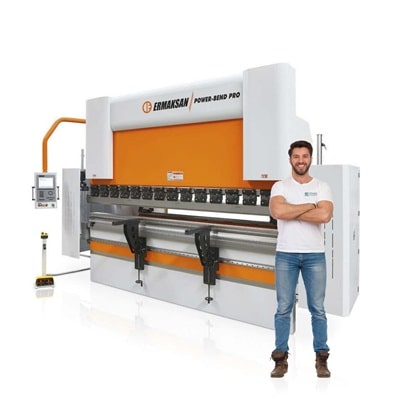

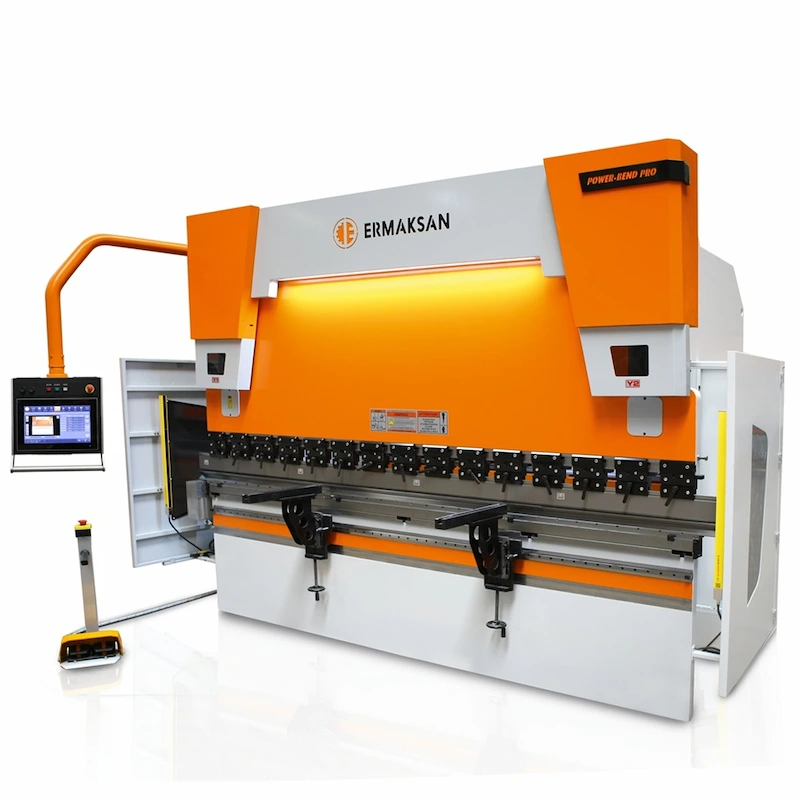

Ermaksan Powerbend Pro Press Brake

In stock: 5 Axis 135T x 3100mm



    • The Ermaksan Powerbend Pro Press Brake offers the perfect blend of speed and power.
    • Electronically balanced CNC Press Brake and the standard arrangement has three CNC controlled axes. Y1, Y2 (left and right cylinders) and X (backgauge). We usually stock machines with additional CNC axes, R (backgauge up and down) and crowning.
    • Uses the highest quality European components such as German Siemens electrical, German Hoerbiger Hydraulics including their quiet high-pressure energy-efficient pump and either the Swiss Cybelec CNC or the Dutch Delem CNC. The result is a very reliable high performance bending machine.
    • On the 135T x 3.1m model, you get 550mm daylight, 275mm stroke, 200mm/sec approach and 120mm/sec return speed and a backgauge operating at 230mm/sec — awe-inspiring performance and versatility at a reasonable price.
    • Available with Delem or Cybelec Controls from 3 axis to 9 axis.



    • Other popular models include:
              • 135T x 4100mm
              • 175T x 3100mm
              • 175T x 4100mm
              • 220T x 3100mm
              • 220T x 4100mm
              • 220T x 6100mm

How can the Powerbend Brake Press help your business?

Contact us to discuss your business’s needs and to learn how the Powerbend Pro can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.   View other available press brakes here.
Technical Information

Unique Features

• Configured with enough CNC axis to reduce material handling and set up time to a minimum.

• CNC Crowning table, Y1,Y2 for depth, X for back gauge in and out, R for back gauge up and down.

• Controller is the easy-to-use; Cybelec Cybtouch 12 from Switzerland. With this 2D Graphic touch screen controller you will be an expert in no time at all.

• Incredibly versatile with 530mm of daylight, 275mm of stroke and 410mm of throat depth.

• Extremely fast with 200mm/sec approach, up to 10mm/sec bending and 120mm /sec return.

• Best quality components throughout with Dutch Delem Control, Swiss Hoerbiger hydraulics, German Fiessler Laser Guards and Italian Rolleri tooling.

• Fiessler AKAS II laser guarding system and interlocked side gates and rear light curtains.

Perfect bends, every time.



See the Powerbend Press Brake in action
