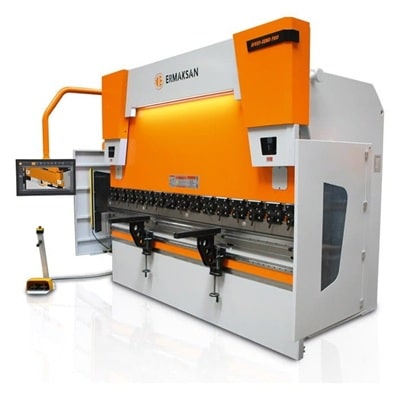

Speedbend cnc press brake

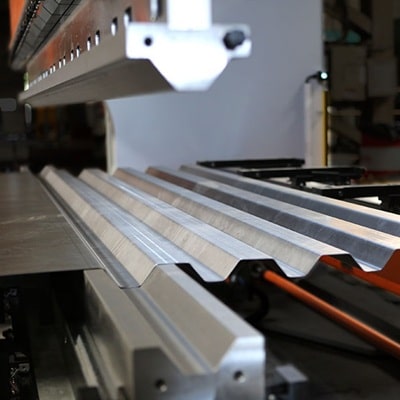

Ermaksan Speedbend Pro Press Brake - In Use

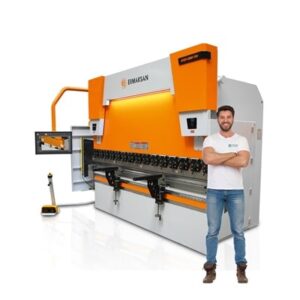

Ermaksan Speed-Bend-Pro CNC Press Brake
Ermaksan Speedbend Pro Press Brake - 410mm Throat Depth

Ermaksan Speedbend CNC Press Brake

Various Models Available
8 Axis  60T x 2600mm
8 Axis 135T x 3100mm
8 Axis 220T x 4100mm
8 Axis 220T x 6100mm
8 Axis 260T x 4100mm



The Ermaksan Speedbend Pro CNC Press Brake will reduce unit time costs and with its fast, high quality production capability.

The standard arrangement has seven CNC controlled axes. Y1, Y2 (left and right cylinders) and X (backgauge in and out), R (backgauge up and down) and Z1, Z2 (Individual control of backgauge fingers left and right on backgauge bar) and Crowning.

Ermaksan uses the highest quality European components such as German Siemens electrical, German HAWE Hydraulics including their quiet high-pressure energy-efficient pump and either the Swiss Cybelec CNC or the Dutch Delem CNC. The result is a very reliable high performance bending machine.

On the 8Axis 175T x 3.1m machine, you get 550mm daylight, 275mm stroke, 180mm/sec approach and 190mm/sec return speed.

With its speed and versatility, this CNC Press Brake is a profitable investment and can pay for itself in a short time.

How can the Speedbend CNC Press Brake help your business?

Contact us to discuss your business’s needs and to learn how the Speedbend Pro can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.   View other available press brakes here.
Technical Information

Unique Features

• Steel body with mono bloc welding of ST44 material which is rigid against bending and high tension
• 8 axes (Y1, Y2, X, X5, R, Z1, Z2, Crowning)
• CNC controlled back gauge system with 4 axes (X,X5, R, Z1, Z2) AC servo motor
• HOERBIGER hydraulic system
• CNC controlled motorized crowning system
• Top and bottom tools machined and hardened (835 mm length)
• Easy clamping top tool holder system
• Control units; ER99, or DELEM 66 Touch
• Electrical panel designed and manufactured from SIEMENS electrical and automation products in accordance with the CE regulations
• Ergonomic and user-friendly suspension control panel
• Backlight protection
• Side protection covers
• Y1+Y2 axis synchronization with a tolerance of 0.0004 provided by linear scales
• CE compliant foot pedal
• Sliding front support arms with mm/inch scale
• 410 mm throat depth (60 – 320 tons)
• LED light enclosures
