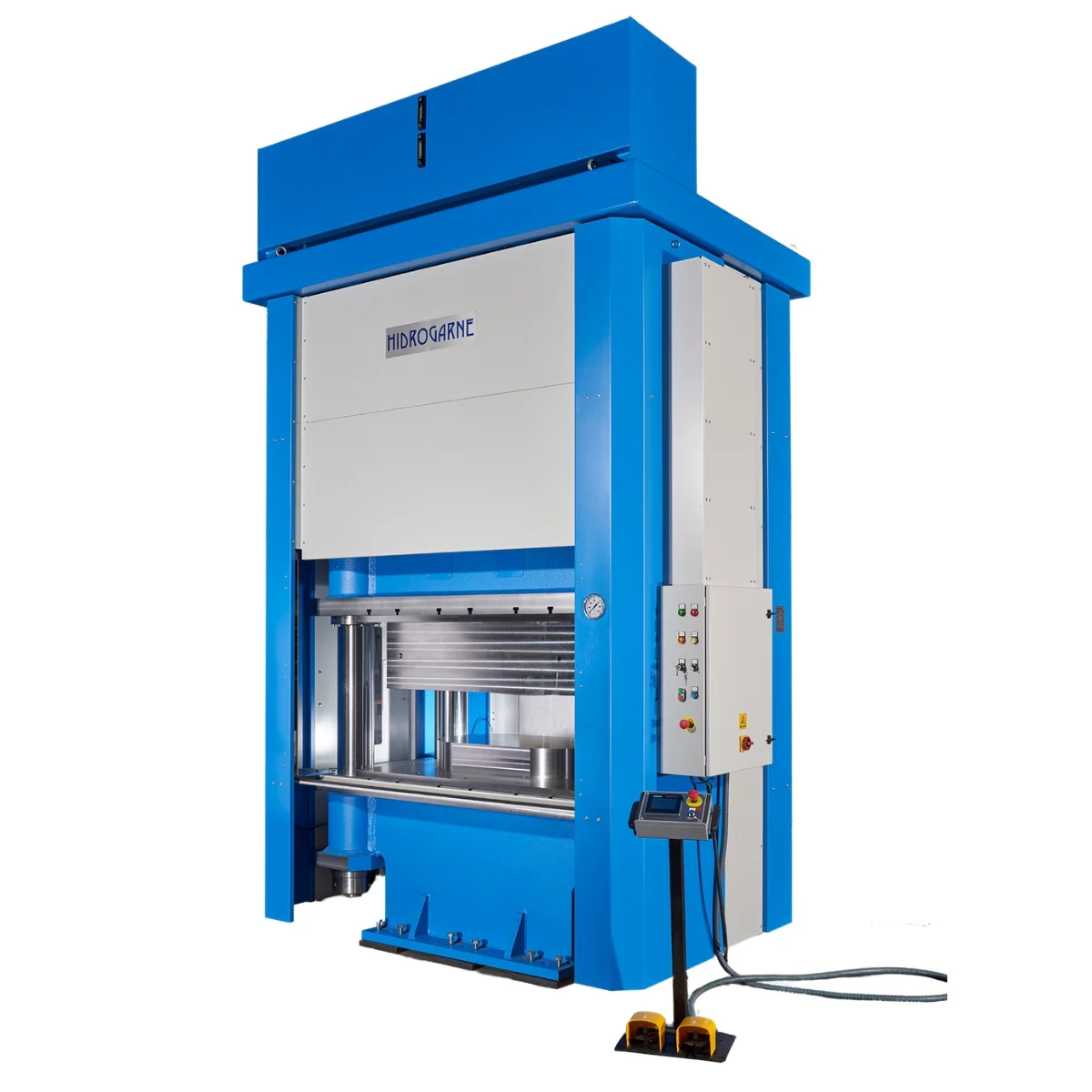

Hidrogarne Stamping Hydraulic Press
M/NC Series
The M/NC Series Stamping Hydraulic Press has 6 different power ranges from 50-300 tonnes and is designed with four cylindrical columns to provide efficient and precise solutions in a wide range of industrial applications. These include stamping, blanking, deep drawing and deburring.
The M/NC Series ensures excellent performance and versatility.
STRUCTURE – Consist of three electro-welded structures made exclusively of S355JR steel. They are stabilized and machined at the end of the welding process to guarantee perfect parallelism and precision
TABLES – equipped with an upper table and a lower table made of C45E steel machined with DIN-650 grooves. We guarantee minimal friction in the vertical movement of the upper table by installing maintenance-free bimetallic bushings and perfect parallelism through four chrome-plated and ground cylindrical columns.
CYLINDER AND HYDRAULICS – Double-acting cylinder with seamless cold-drawn tube, chrome-plated piston, and maintenance-free wear-resistant guides.
Motorised hydraulic group with two speeds with automatic disconnection of the fast speed. It includes a cylinder decompression valve. Silent hydraulic pump.
ELECTRICAL INSTALLATION AND SAFETY – Incorporates a SIEMENS safety PLC model SIMATIC S7 1200 and a 100mm touchscreen model MTP-400 as standard. It can be programmed in semi-automatic and automatic mode as well as the power, the stroke, and the dwell time of the upper cylinder. It has a storage capacity of 99 programs, and all the aforementioned values can be programmed in each one.
The electrical panel incorporates a selector that allows choosing the type of work we want to perform in manual or automatic position and a key selector for maintenance work.
It includes the verification and certification of correct operation and the safety distance for photocells. To guarantee safety, they incorporate safety photoelectric barriers type 4 PLe.
